This Level 3 damp survey was undertaken for a residential property in Wood Green (N22). The property owner instructed an independent investigation to evaluate elevated ground floor damp readings and external timber decay. The comprehensive survey provided an objective evaluation of the building from roof level down to the ground.
About the Issue
The homeowner noticed damp patches near ground floor bay windows and staining on first floor ceilings, alongside severe decay on rear timber decking. Fearing that rising damp was deteriorating wall masonry and floor timbers, they requested a professional inspection to determine necessary repairs.
The Challenge
The inspection commenced on 4th March, 11:00 AM, combining internal moisture testing across all floors with external masonry checks and a high-level drone survey.
Diagnostic findings across the property included:
- Top floor rooms were dry throughout, with normal moisture readings and no visible defects on walls, ceilings, or floors.
- First floor checks showed historic, dry staining in a wall corner (from a repaired gutter leak) and on a ceiling (from a leak above), while bathroom ceiling staining prompted a recommendation to open a ceiling section to inspect the void for hidden plumbing leaks and add insulation.
- Ground floor moisture testing recorded elevated readings near the front entrance door, on the left-hand side of the bay window and in the right-hand corner of the bay window, with additional patches near the hallway cupboard and left-hand side of the rear doors.

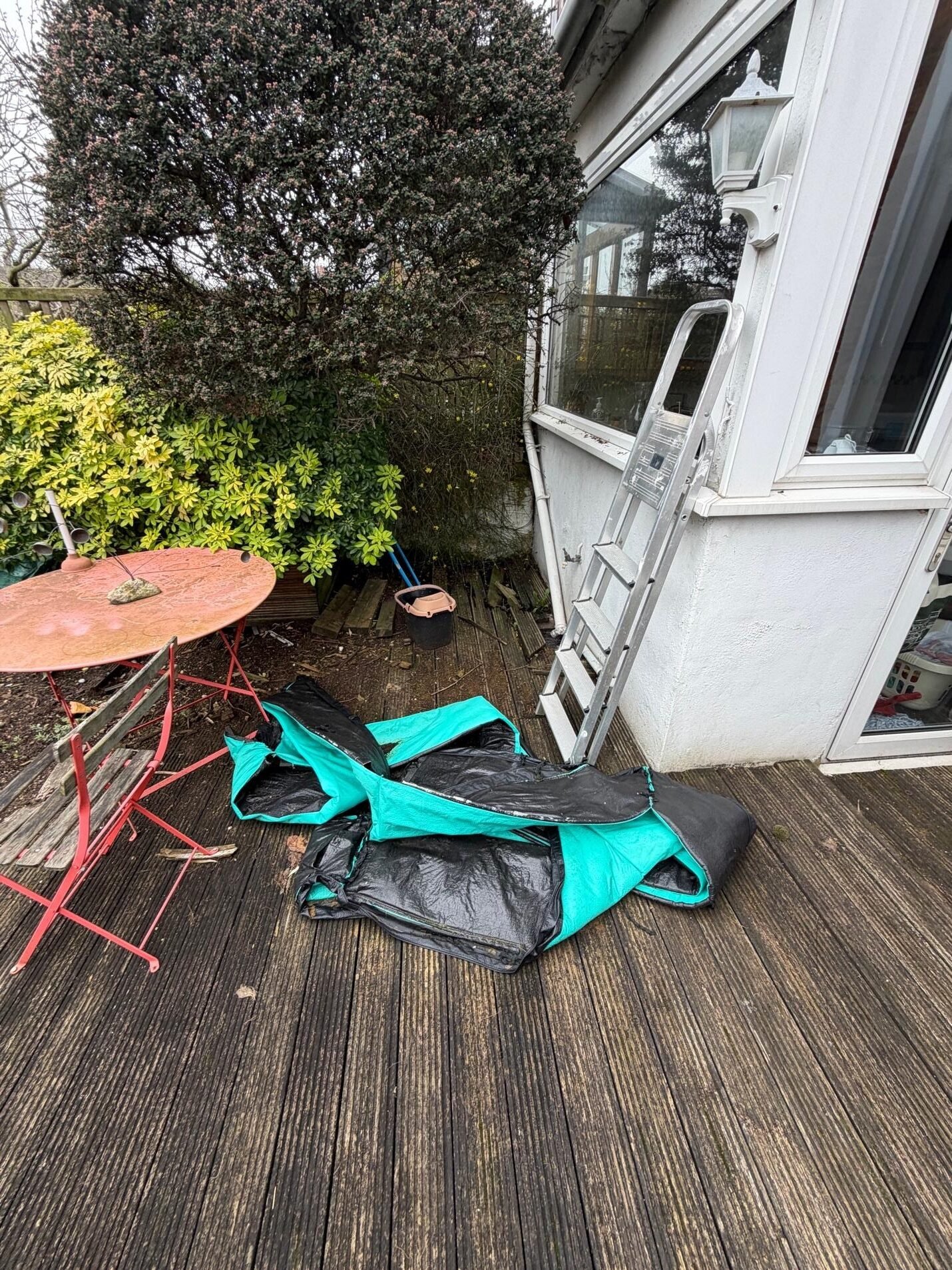

- External checks identified severely rotted rear decking, early rot in timber above the extension near the roof structure, a disconnected downpipe, a disconnected neighbouring downpipe discharging against the party wall, 3 areas of defective mortar pointing on the side wall and a water tank lacking an overflow pipe.
Drone imagery of the roof revealed accumulated dirt and debris in gutter sections and several uncapped chimney pots. The surveyor concluded that external water discharging against walls from disconnected downpipes and open flues was saturating outer brickwork, elevating internal ground floor moisture readings.
The Solution
The survey report detailed a practical, multi-step action plan to correct exterior water management and repair damaged timbers:
- Reconnect the exterior downpipe and the neighbouring property’s front downpipe to ensure proper discharge into the drainage system.
- Clean dirt and debris from all guttering sections and install chimney caps on several open chimney pots.
- Repoint 3 areas of defective mortar pointing on the side wall and fit an overflow pipe to the external water storage tank.
- Replace the structurally deteriorated rear decking and replace decaying timber above the extension near the roof.
- Remove a section of the first floor bathroom ceiling to check the void for concealed leaks or water ingress, installing insulation when reinstating.
- Apply a stain-blocking primer and redecorate dry first floor stains, monitoring ground floor damp patches near the hallway cupboard and rear doors once external drainage is corrected.
The Outcome
The property owner received clear confirmation that first floor stains were historic and dry, while ground floor damp was driven by fixable exterior drainage faults. Choosing an independent survey saved them from unnecessary spending on invasive chemical damp proofing.
Why This Case Matters
Unbiased damp diagnostics focus on identifying true water ingress sources rather than selling chemical treatments. By combining drone roof inspections with internal moisture mapping, independent surveys protect building owners from paying for unnecessary internal work when external maintenance is required.
